Chapter 5

Programming Graphics

Chapter Goals

To be able to write simple applications
To display graphical shapes such as lines and ellipses
To use colors
To display drawings consisting of many shapes
To read input from a dialog box
To develop test cases that validate the correctness of your programs

Frame Windows

The JFrame class

	JFrame frame = new JFrame();
	frame.setSize(300, 400);
	frame.setTitle("An Empty Frame");
	frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
	frame.setVisible(true);

import javax.swing.*;

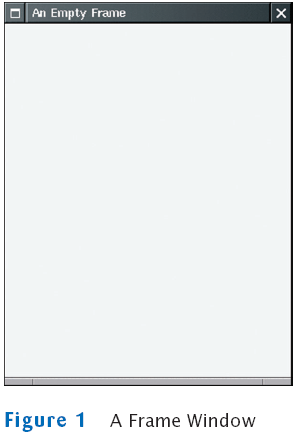

A Frame Window

File EmptyFrameViewer.java

Self Check

How do you display a square frame with a title bar that reads "Hello, World!"?
How can a program display two frames at once?

Answers

Modify the EmptyFrameViewer program as follows:

frame.setSize(300, 300);
frame.setTitle("Hello, World!");

Construct two JFrame objects, set each of their sizes, and call setVisible(true) on each of them

Drawing Shapes

paintComponent: called whenever the component needs to be repainted:

public class RectangleComponent extends JComponent
{
   public void paintComponent(Graphics g)
   {
      // Recover Graphics2D
      Graphics2D g2 = (Graphics2D) g;
      . . .
   }
}

Drawing Shapes

Graphics class lets you manipulate the graphics state (such as current color)
Graphics2D class has methods to draw shape objects
Use a cast to recover the Graphics2D object from the Graphics parameter
```
Rectangle box = new Rectangle(5, 10, 20, 30);
g2.draw(box);
```
java.awt package

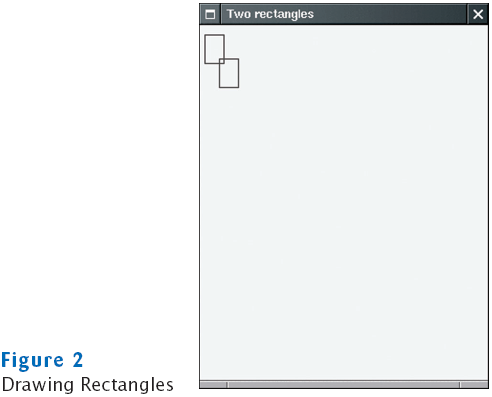

Drawing Rectangles

Rectangle Drawing Program Classes

RectangleComponent: its paintComponent method produces the drawing
RectangleViewer: its main method constructs a frame and a RectangleComponent, adds the component to the frame, and makes the frame visible
1. Construct a frame
2. Construct an object of your component class:
  RectangleComponent component = new RectangleComponent();
3. Add the component to the frame
  frame.add(component);
  However, if you use an older version of Java (before Version 5), you must make a slightly more complicated call:
  frame.getContentPane().add(component);
4. Make the frame visible

File RectangleComponent.java

File RectangleViewer.java

Self Check

How do you modify the program to draw two squares?
How do you modify the program to draw one rectangle and one square?
What happens if you call g.draw(box) instead of g2.draw(box)?

Answers

Rectangle box = new Rectangle(5, 10, 20, 20);
Replace the call to box.translate(15, 25) with box = new Rectangle(20, 35, 20, 20);
The compiler complains that g doesn't have a draw method

Applets

Applets are programs that run inside a web browser

To implement an applet, use this code outline:

public class MyApplet extends JApplet
{
   public void paint(Graphics g)
   {
      // Recover Graphics2D
      Graphics2D g2 = (Graphics2D) g;
      // Drawing instructions go here
      . . .
   }
}

Applets

This is almost the same outline as for a component, with two minor differences:
1. You extend JApplet, not JComponent
2. You place the drawing code inside the paint method, not inside paintComponent
To run an applet, you need an HTML file with the applet tag
An HTML file can have multiple applets; add a separate applet tag for each applet

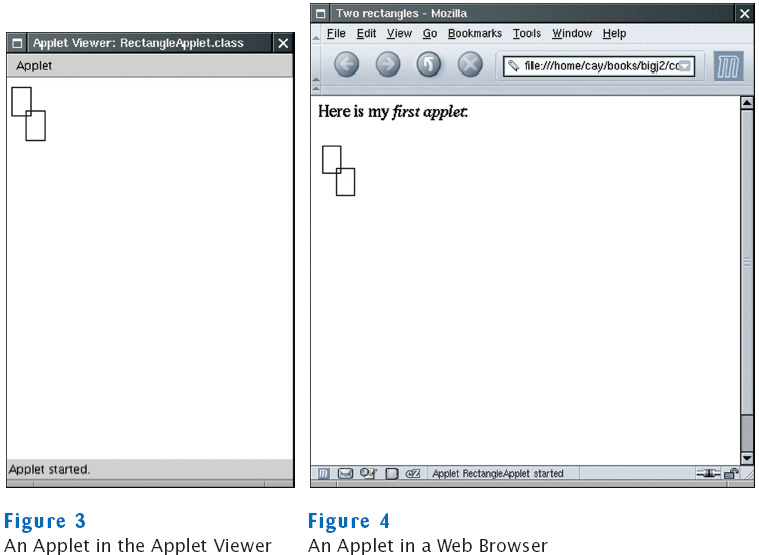

You view applets with the applet viewer or a Java enabled browser
appletviewer RectangleApplet.html

File RectangleApplet.java

File RectangleApplet.html

File RectangleAppletExplained.html

Applets

Graphical Shapes

Rectangle, Ellipse2D.Double, and Line2D.Double describe graphical shapes
We won't use the .Float classes
These classes are inner classes–doesn't matter to us except for the import statement:
```
import java.awt.geom.Ellipse2D; // no .Double
```

Must construct and draw the shape

Ellipse2D.Double ellipse = new Ellipse2D.Double(x, y, width, height);
g2.draw(ellipse);

An Ellipse

Drawing Lines

To draw a line:

Line2D.Double segment = new Line2D.Double(x1, y1, x2, y2);

or,

Point2D.Double from = new Point2D.Double(x1, y1);
Point2D.Double to = new Point2D.Double(x2, y2);
Line2D.Double segment = new Line2D.Double(from, to);

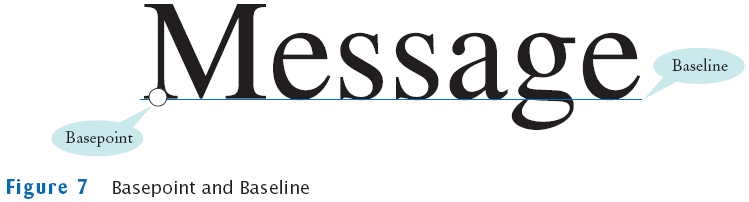

Drawing Strings

g2.drawString("Message", 50, 100);

Self Check

Give instructions to draw a circle with center (100, 100) and radius 25
Give instructions to draw a letter "V" by drawing two line segments
Give instructions to draw a string consisting of the letter "V"

Answers

g2.draw(new Ellipse2D.Double(75, 75, 50, 50);

Line2D.Double segment1 = new Line2D.Double(0, 0, 10, 30);
g2.draw(segment1);
Line2D.Double segment2 = new Line2D.Double(10, 30, 20, 0);
g2.draw(segment2);

g2.drawString("V", 0, 30);

Colors

Standard colors Color.BLUE, Color.RED, Color.PINK etc.
Specify red, green, blue between 0.0F and 1.0F

Color magenta = new Color(1.0F, 0.0F, 1.0F); // F = float

Set color in graphics context

g2.setColor(magenta);

Color is used when drawing and filling shapes

g2.fill(rectangle); // filled with current color

Self Check

What are the RGB color values of Color.BLUE?
How do you draw a yellow square on a red background?

Answers

0.0F, 0.0F, and 0.1F

First fill a big red square, then fill a small yellow square inside:

g2.setColor(Color.RED);
g2.fill(new Rectangle(0, 0, 200, 200));
g2.setColor(Color.YELLOW);
g2.fill(new Rectangle(50, 50, 100, 100));

Drawing Complex Shapes

Good practice: Make a class for each graphical shape

class Car
{
   . . .
   public void draw(Graphics2D g2)
   {
      // Drawing instructions
      . . .
   }
}

Plan complex shapes by making sketches on graph paper

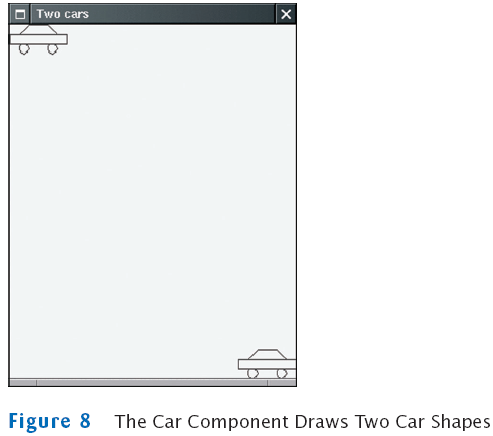

Drawing Cars

Draw two cars: one in top-left corner of window, and another in the bottom right

Compute bottom right position, inside paintComponent method:

int x = getWidth() - 60;
int y = getHeight() - 30;
Car car2 = new Car(x, y);

getWidth and getHeight are applied to object that executes paintComponent
If window is resized paintComponent is called and car position recomputed

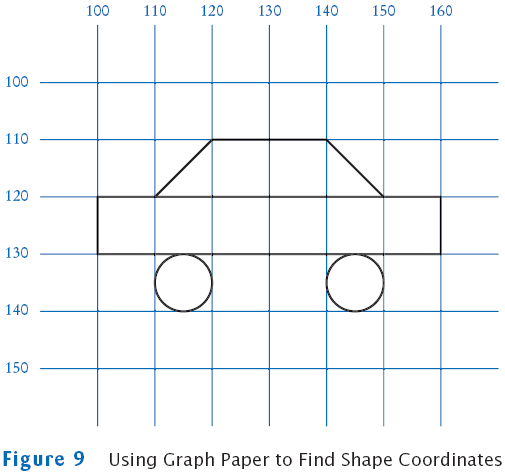

Plan Complex Shapes on Graph Paper

File CarComponent.java

File Car.java

File CarViewer.java

Self Check

Which class needs to be modified to have the two cars positioned next to each other?
Which class needs to be modified to have the car tires painted in black, and what modification do you need to make?
How do you make the cars twice as big?

Answers

CarComponent
In the draw method of the Car class, call
```
g2.fill(frontTire);
g2.fill(rearTire);
```
Double all measurements in the draw method of the Car class

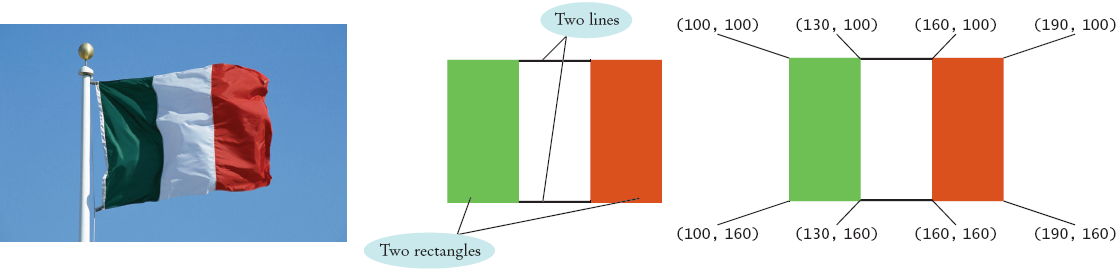

Drawing Graphical Shapes

Rectangle leftRectangle = new Rectangle(100, 100, 30, 60);
Rectangle rightRectangle = new Rectangle(160, 100, 30, 60);
Line2D.Double topLine
   = new Line2D.Double(130, 100, 160, 100);
Line2D.Double bottomLine
   = new Line2D.Double(130, 160, 160, 160);

Reading Text Input

A graphical application can obtain input by displaying a JOptionPane
The showInputDialog method displays a prompt and waits for user input

The showInputDialog method returns the string that the user typed

String input = JOptionPane.showInputDialog("Enter x");
double x = Double.parseDouble(input);

File ColorViewer.java

File ColoredSquareComponent.java

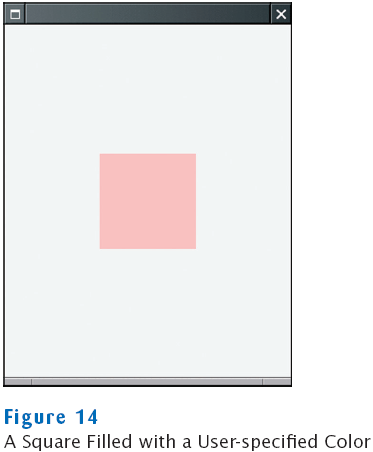

Output

Self Check

Why does this program produce three separate dialog boxes instead of inviting the user to type all three values in a single dialog box?
Why does this program place the showInputDialog call into the main method of the ColorViewer class and not into the paintComponent method of the ColorComponent class?

Answers

If the user entered a string, such as "1.0 0.7 0.7", you would need to break it up into three separate strings. That can be done, but it is more tedious to program than three calls to showInputDialog.
You don't want the dialog boxes to appear every time the component is repainted.

Comparing Visual and Numerical Information

Compute intersection between circle and vertical line
Circle has radius r = 100 and center (a, b) = (100, 100)
Line has constant x value
Calculate intersection points using mathematics:
Equation of a circle with radius r and center point (a, b) is

If you know x, then you can solve for y:

Comparing Visual and Numerical Information

That is easy to compute in Java:

double root = Math.sqrt(r * r - (x - a) * (x - a));
double y1 = b + root;
double y2 = b - root;

Plot circle, line, computed intersection points
Visual and numerical results should be the same

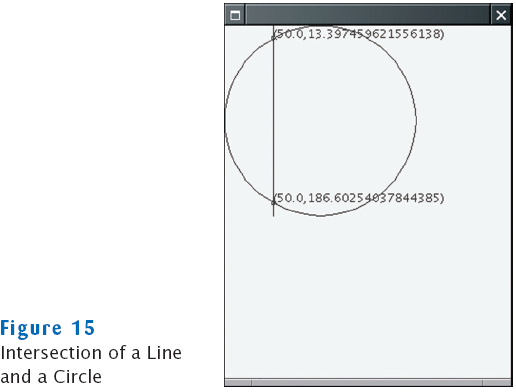

Intersection of a Line and a Circle

File IntersectionComponent.java

File IntersectionViewer.java

File LabeledPoint.java

Self Check

Suppose you make a mistake in the math, say, by using a + sign instead of a - sign in the formula for root. How can you tell that the program does not run correctly?
Which intersection points does the program draw when you provide an input of 0?

Answers

The intersection points will be drawn at a location that is different from the true intersection of the line and the circle
The point (0, 100) is drawn twice
